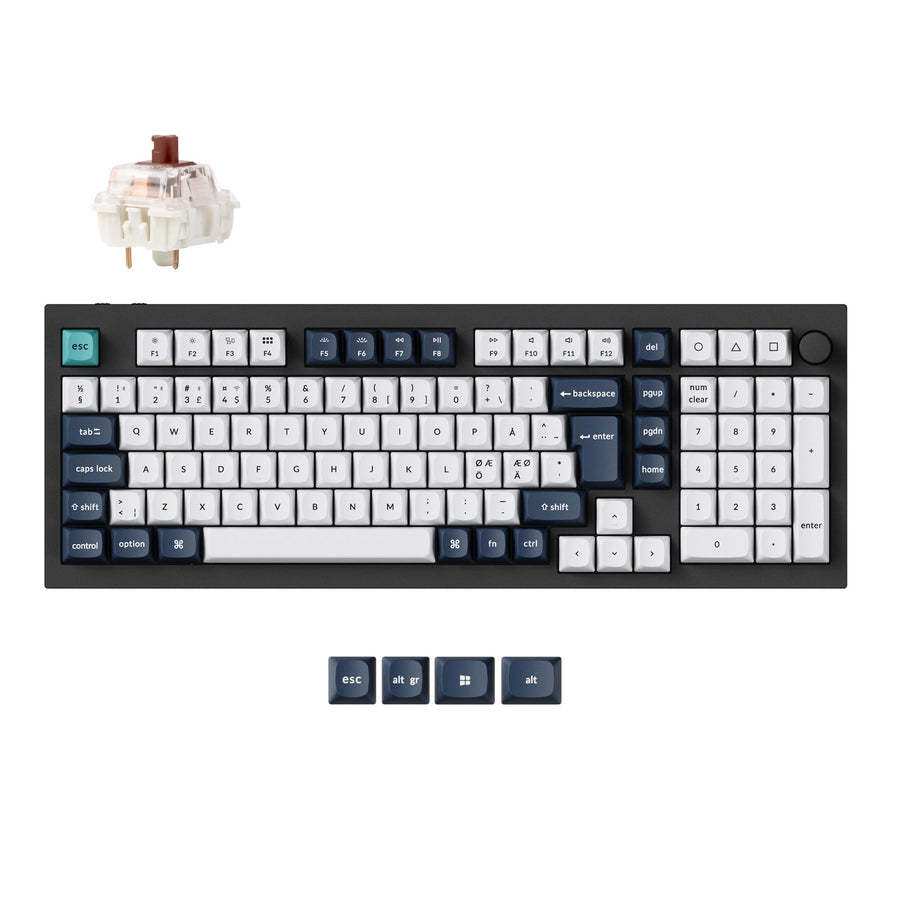

Keychron Q5 Max QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection

SKU: Q5M-M1-DE
€213,00

Type
Layout Version
Switches

The Fully Assembled version includes:
  • ?The keyboard PCB, the case, and the PC plate.
  • Keycaps (included Mac & Windows keycaps).
  • Switches.

ISO options: German, UK, Nordic, and Swiss layouts.

No discount codes can be used for the Q5 Max.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Keychron Q5 Max
ISO Layout Collection

Meet the Keychron Q5 Max, a full metal QMK/VIA wireless custom mechanical keyboard upgraded with a 2.4 GHz wireless connection, featuring a 1000 Hz polling rate. Elevating the typing experience further, it has been thoughtfully upgraded with multiple layers of acoustic foams, ensuring a premium sound quality with every keystroke.

Q5 Max ISO

Paired with many other premium features, such as the double-gasket design, PBT keycaps, screw-in stabilizers, and more, the Keychron Q5 Max promises an unparalleled typing journey that transcends expectations.

Features
Customize Your Q5 Max

Choose the keycaps, switches, and more accessories for your Q5 max.

Q5 Max ISO Layout Versions

These versions include the UK, German, Swiss, and Nordic layouts, all with extra keycaps suitable for Mac and Windows

🇬🇧 UK-ISO Layout

Q5-Max-UK-keycaps

🇩🇪 German DE-ISO Layout

Q5-Max-German-keycaps

🇨🇭Swiss-ISO Layout

Q5-Max-Swiss-keycaps

🇩🇰 🇫🇮 🇳🇴 🇸🇪 Nordic-ISO Layout

Q5-Max-Nordic-keycaps

2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q5 Max via Bluetooth 5.1 to three devices.

Q5 Max ISO

A Refined Piece Of Metal Art

The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q5 Max.

Q5 Max ISO

Significantly Enhanced Acoustic Foams

Elevate the typing experience with a combination of premium acoustic foams such as IXPE, PET, and Latex. Each keystroke becomes enjoyable, making every tap a delight for the senses.

Easy Assemble

We designed every component to be able to assemble easily so you can customize and adjust each component with ease to create your ultimate typing experience.

Q5-Max-structure.jpg__PID_a5b660f3-c60b-4927-a5b1-3c72bba637e3.jpg__PID:fc1e0351-e535-4962-aef2-d23c2919a9f3
Q5-Max-structure-mobile
An Epic Core Inside The Keyboard

An Epic Core Inside The Keyboard

A powerful ARM Cortex-M4 chip (MCU) equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on 2.4 GHz and wired modes (90 Hz on Bluetooth mode), which makes the latency hardly noticeable even in competitive games.

Q5 Max ISO

An Epic Core Inside The Keyboard

A powerful ARM Cortex-M4 chip (MCU) equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on 2.4 GHz and wired modes (90 Hz on Bluetooth mode), which makes the latency hardly noticeable even in competitive games.

Double-Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals.

Double-Gasket Design
Q5 Max ISO

Experience the next level of key sounds and comfort with our gasket mount design together with a flexible PC (Polycarbonate) plate. This design combination allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

OSA Double-Shot PBT Keycaps

To further fine-tune your typing experience, the Q5 Max ISO comes with our unique OSA profile (OEM profile with spherical-angle) and double-shot PBT keycaps that aim to provide a more comfortable fingertip feel with excellent oil resistance for long-term use on the TKL layout.

OSA Double-Shot PBT Keycaps

Suitable for All Devices

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q5 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Q5-Max-Windows-keycaps.jpg__PID_e072701a-289a-44ed-84fb-97ee83454dc2.jpg__PID:cdd0897f-38f6-4090-9ca4-e28db71245fc
Q5-Max-Swiss-keycaps.jpg__PID:f9c7cdd0-897f-48f6-8090-1ca4e28db712
launcher__PID:a3f326c4-f8a2-46cf-8c78-31fa15ba1c3e

Program The Q5 Max with Keychron Launcher

Endless possibilities for a fluid workflow thanks to its ability to remap any key, and create macro commands, shortcuts, or key combinations through the Launcher.

Check out the video above demonstrating how to remap the F15 key to an Eject key with the Launcher software to create a shortcut to put your Mac to sleep (Command-Option-Eject).

Get the Q6 Max keymap working on VIA

Since the VIA code for the Q6 Max is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the Q6 Max keymap working on VIA.

Q-Max-ISO-hot-swappable

Hot-Swappable

Every detail matters for a personalized typing experience, that’s why we give you the power. You can hot-swap every switch on the Q5 Max with almost all of the 3pin and 5pin MX style mechanical switches on the market (including Cherry, Gateron, Kailh, Panda, etc.) without soldering required. You can customize your own typing experience in seconds.

South-Facing RGB

Comes with 22 types of RGB backlight settings. You can further fine-tune the RGB hue, saturation, brightness, effect speed, and different modes, or even remap these keys with QMK/VIA.

Gateron Jupiter Switch

Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.

The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.

Gateron Jupiter Switch Features

PCB Stabilizers

No detail is too insignificant when it comes to your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as the space bar, shift, enter, and delete keys. You can even customize your favorite stabilizers on your own.

PCB Stabilizers

What's in the box?

Q5-Max-ISO-package-list
Differences Among the Q Max_ Q Pro_ and Q_yy.jpg__PID:897f38f6-0090-4ca4-a28d-b71245fc1e03

Specs

Width145 mm
Length 408 mm
Front Height22.6 mm (without keycaps)
Back Height35.8 mm (without keycaps)
Feet Height2.4 mm
Angle 5.2°
Weight 2215 g ± 10 g (Fully Assembled version)
Body Material Aluminum
Plate Material PC
KeycapOSA double-shot PBT keycaps, not shine-through (Fully Assembled version)
Switch Gateron Jupiter (Fully Assembled version)
Stabilizer Screw-in PCB stabilizer
MCUARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Compatible System macOS/Windows/Linux
Battery4000 mAh Rechargeable li-polymer battery
Wireless Working Time (Backlit off)Up to 180 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB)Up to 100 hours (Lowest brightness)
Bluetooth Version5.1
Hot-swappableYes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc.
Polling Rate 1000 Hz (2.4 GHz & wired) / 90 Hz (Bluetooth)
Connectivity2.4 GHz / Bluetooth / Type-C wired
N-Key Rollover (NKRO)Yes for both wireless and wired modes
Backlight South-facing RGB LED
Bluetooth Device Name Keychron Q5 Max
Operating Environment -10 to 50℃
Keychron Q5 Max User Guide

Learn more about the Keychron Q5 Max such as the Q5 Max shortcuts, assembling the Q5 Max, factory reset, and more in the FAQ section.
